CMOS inverter

An introductory lab to SPICE software.
By Lucien Gheerbrant

Introduction

After understanding the characteristics of the PMOS and NMOS components, we will now combine the two to make a CMOS inverter, as in Complementary MOS. This will allow us to make the simplest digital electronic component, an inverter. We will also study the layout of a CMOS inverter.

CMOS Inverter Operation Analysis

The CMOS schematic is displayed in the figure below. The goal is to take advantage of the “opposite characteristics” of the nMOS and pMOS transistors.

If the input voltage is at 0 V, the N-channel transistor is OFF and the current doesn’t go through. The P-channel transistor however is ON and its current flows freely, as the drain is connected to the source. That means we get would get the voltage of vdd!* through in the output, so 2.5 V.

If the input voltage is at 2.5 V, the N-channel transistor is ON and its current flows freely, and the source get connected to drain. The P-channel transistor is OFF and its current stops. This time, the output is the difference between the ground voltage and 0 V, which is 0.

CMOS Inverter Fabrication Process

To make the CMOS inverter, we need to make an N-channel in a P-type for the NMOS, and a P-channel for the in a N-type for the PMOS, using P-wells and N-wells. Poly, meaning polysilicon, is what constitutes the gate.

Results

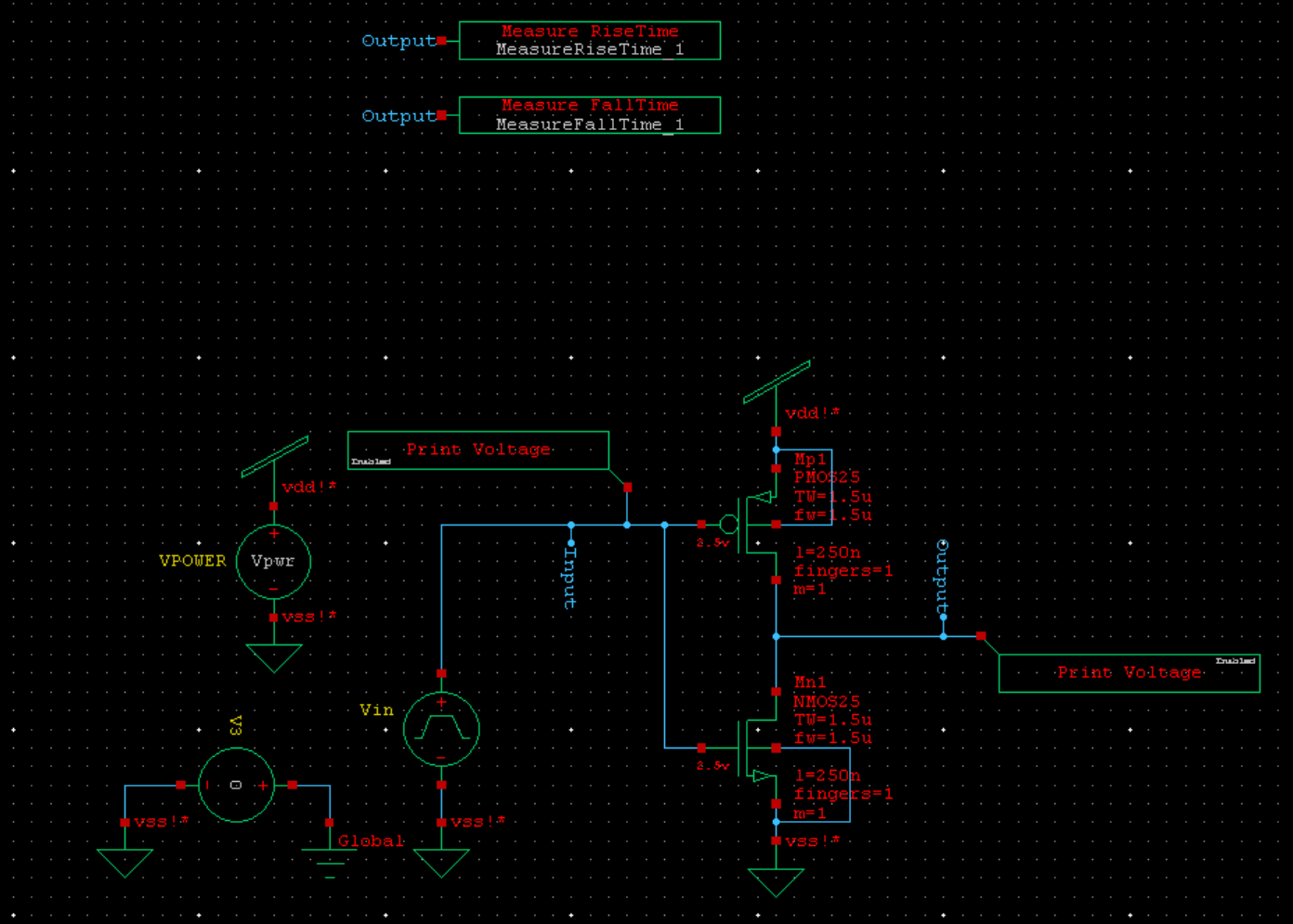

Figure 1: CMOS inverter schematics, 15/08/2024

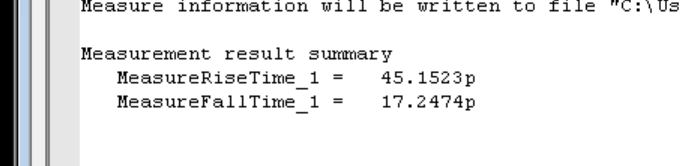

Figure 2: Pulse signal rising and falling times. 15/08/2024

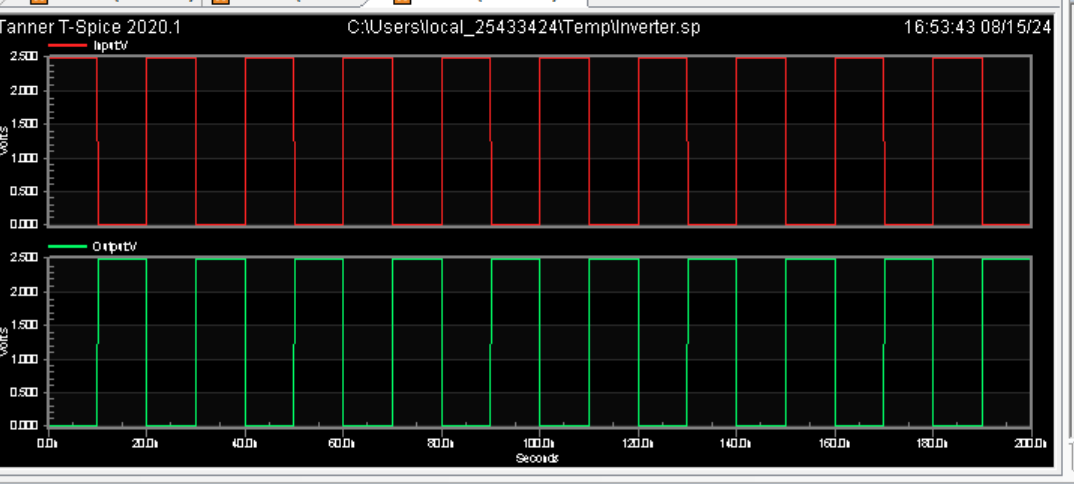

Figure 3: Input and output voltage values of a CMOS inverter using a pulse source between 0 and 2.5v, 15/08/2024

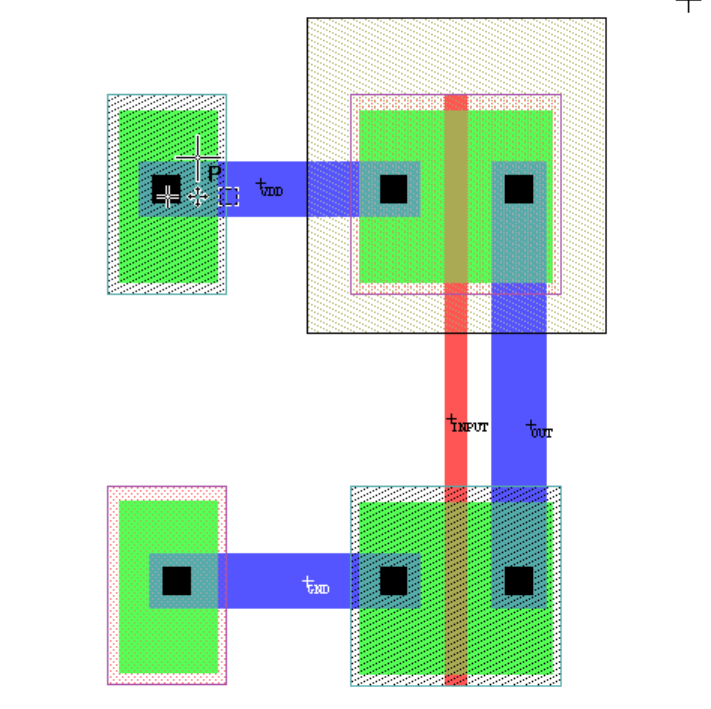

Figure 4: Layout of a CMOS inverter, 15/08/2024

Conclusions

The simulation of the CMOS respects its inverting characteristics. We can see the added propagation delay of MOS transistors in the raising and lowering times.

This inverter is the simplest digital electronic component needed for modern computing. What we need next is to make a NAND gate to make the real beginning of Boolean logic through digital electronic.
